Technical Specifications

Injection Unit
Locking	5 Point Twin Super Toggle Locking
Screw Diameter	30 / 32 mm
Shot Capacity	60 / 80 gram
Maximum Pressure	1500 kg/cm²
Injection Stroke	10 to 150 mm
Hopper Capacity	10 kg
Clamping Unit
Maximum Mould Size	265 x 330 mm
Maximum Mould Opening	200 mm
Distance Between Tie Bars	185 x 285 mm
Min / Max Mould Height	80 x 305 mm
Mould Locking Force	60 ton
Tie Bar Thickness	57 mm
Mould Ejector Center	Manual & Hydraulic
Hydraulic Equipment
Ejector Force	1.5 ton
Ejector Stroke	80 mm
Oil Tank Capacity	110 liter
Pressure Control Valve	Polyhydron
Hydraulic Parts	Yuken / Sufon
Oil Cooler	Machine attached, 30 inch
Electricals
Heating Zone	3+1 qn
Heating Load	1 x3 / 3 kw
Nozzle	250 w / 1/4 w/kw
Electric Motor Load	5 / 3.7 & 7.5 / 5.5 hp/kw
Total Connecting Load	7.1 & 8.9 kw
General
Floor Area	28 inch
Height	92 inch
Length	72 inch
Weight	1200 kg

VERTICAL PLASTIC INJECTION MOULDING MACHINE

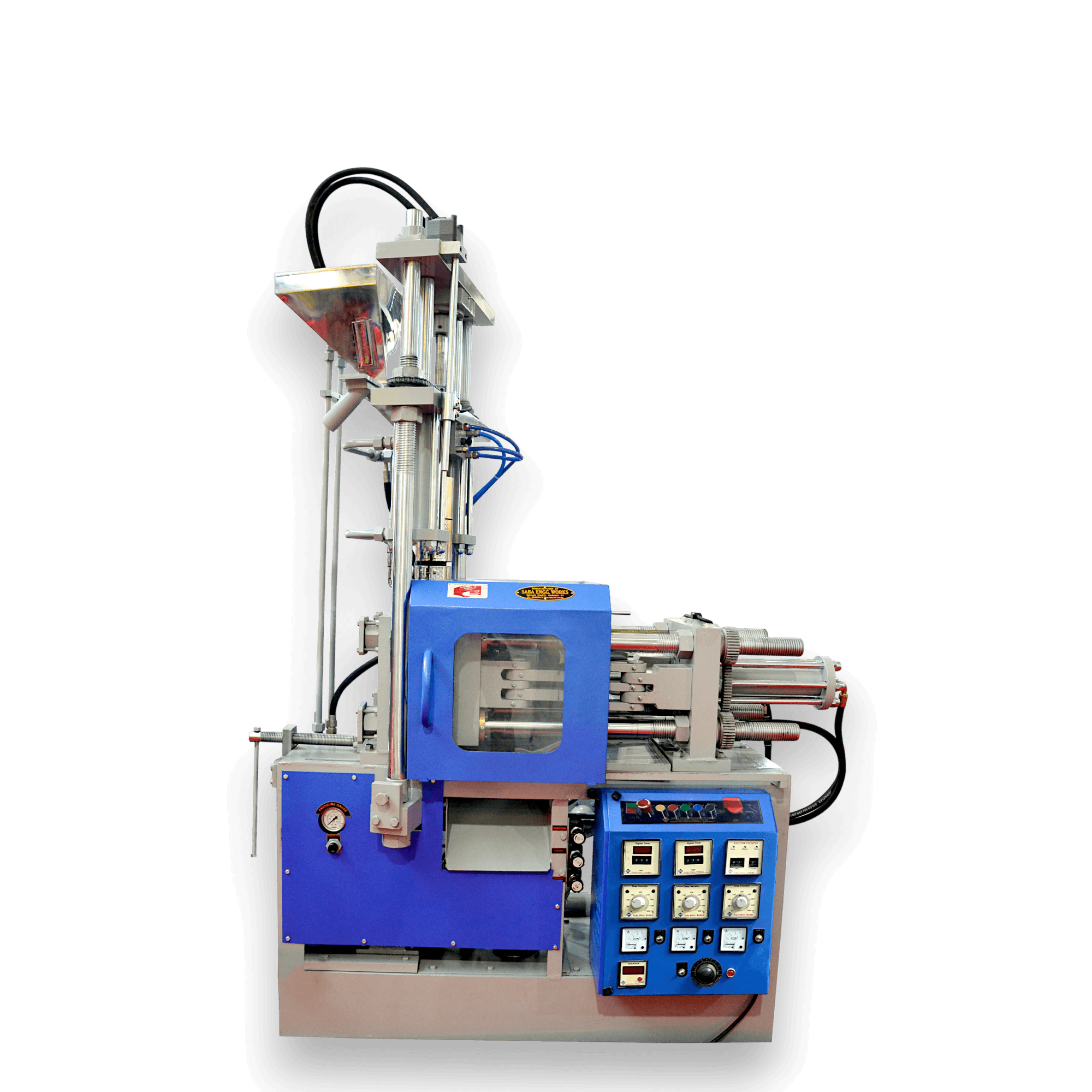

3 Plate Side Toggle (Electrical)

Name: 3 Plate Side Toggle (Electrical)
Brand: Saba Engineering Works
SKU: 3-plate-side-toggle-electrical

Vertical screw type, 3-plate side toggle, electrical control. 5-point twin super toggle locking, 60–80 g shot, 60-ton locking force.

PDF Brochure
